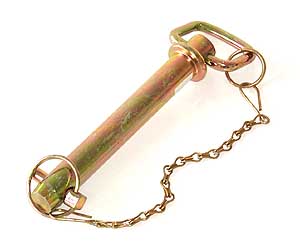

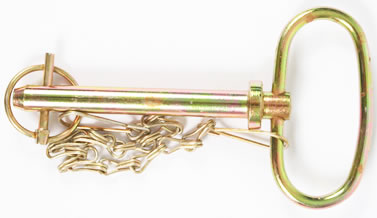

Standard Drawbar Pins |
 |
DIAMETER |
PART No. |
EFFECTIVE LENGTH |
| 1/2" (12.7mm) |
|
3 1/2" (90mm) |
| 5/8" (16mm) |
|
4 1/4" (108mm) |
|
 |
DIAMETER |
PART No. |
EFFECTIVE LENGTH |
| 3/4" (19mm) |
B408
|
3 3/4" (95mm)
|
|
B404
|
6 1/4" (160mm)
|
| 7/8" (22mm) |
B405
|
| 1" (25.4mm) |
B410
|
| 1 1/8" (28.6mm) |
B2662
|
4 3/4" (120mm)
|
|
B412
|
6 1/4" (160mm)
|
|
B6412
|
7 1/4" (185mm)
|
|
8 1/4" (210mm)
Replaces CASE
232616A3 |
| 1 1/4" (32mm) |
B415
|
6 1/4" (160mm)
|
| 1 3/8" (35mm) |
B416
|
7 1/4" (185mm)
|
| 1 1/2" (38mm) |
B417
|
|

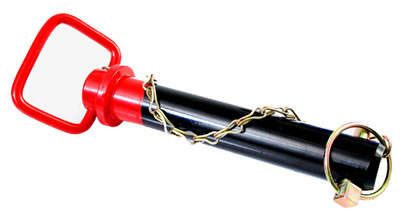

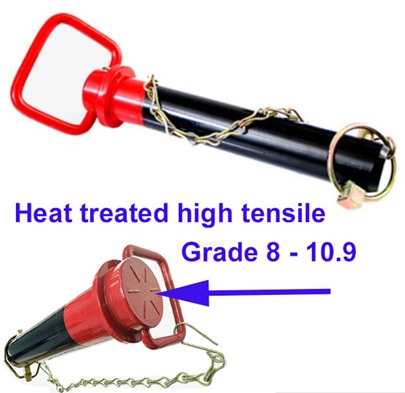

"Red Head" Heat Treated Grade 8 High Tensile Drawbar Pins |
 |
DIAMETER |
PART No. |
EFFECTIVE LENGTH |
| 1" (25.4mm) |
B8410
|
6 1/4" (160mm)
|
|
B6410
|
8 1/4" (210mm)
|
| 1 1/8" (28.6mm) |
|
4 3/4" (120mm) |
|
B9412
|
6 1/4" (160mm)
|
|
B8412
|
7 1/4" (185mm)
|
|
8 1/4" (210mm)
Replaces CASE
232616A3 |
| 1 1/4" (32mm) |
B8415
|
6 1/4" (160mm)
|
|
B6415
|
8 1/4" (210mm)
|
| 1 3/8" (35mm) |
B8416
|
7 1/4" (185mm)
|
|
9 1/4" (235mm) |
| 1 1/2" (38mm) |
B9417
|
7 1/4" (185mm)
|
|
9 1/4" (235mm) |
| 2" (50mm) |
|
7 1/4" (185mm)
|
|
9 1/4" (235mm) |
|
All pins are cold forged or machined down from solid bar to provide integral safety collar.
Base material min. S1040 Carbon Steel - fitted with linch pin and chain assembly. |
