Ford - 3 Point Linkage
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|
Ref
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B121
|
9N5182A
1826363
|
Drawbar
Cat. 1 7/8" Pins x 660mm |
Dexta,
Super Dexta, 2000, 3000, 2600, 3600, 2610, 3610
|
|
B6121
|
201834
1811489
|
Short
Cat. 1 Draw Bar (550mm) |
Suits
Small Japanese Applications
|
|
B124
|
|
Drawbar
Cat. 2 1-1/8" Pins x 660mm |
Major,
Super Major, 4000, 5000, 7000, 4100, 4600
5600, 6600, 6700, 7600, 7700, 3910, 4110, 4610, 6610
6710, 7610, 7710
|
|
B2722
|
|
Drawbar
Cat. 2 = Extra Long (760mm) |
Extra
Long Drawbar to suit larger tractors with swing drawbar
mounts
|
|
2
|
B500
|
|
Cat
1 Lower Link
Fixed Cat 1 Ball Ends |
Thick
12mm |
"A"
813mm
|
Dexta
, Super Dexta
|
|
B501
|
Thick
16mm |
"A"
813mm
|
2000,
3000 (with
Cat 1 linkage)
(Cat 1 7/8" fixed balls)
|
|
B486
|
Non
Original Cat 2 Link (M.F. type) (removable ball) |
Thick
18mm |
"A"
890mm
|
|
4000,
4100, 4600, 4610
Confirm length
|
|
|
B147
|
|
Alternative
H/D M.F. Cat 2 Link
(must fit pair) |
Thick
18mm |
"A"
968mm
|
|
Alternative
H/D. Cat 2 Link
Must Fit Pair due to length
|
|
|

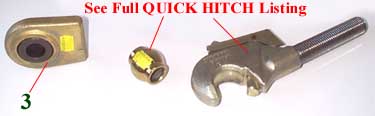

3
|
B652
|
|
Precision
Cat 2 - weld on end |
Universal
|
|
4
|
B56
|
E1ADDN995233
1718883
|
Ball
Cat 1 (7/8") flat sides |
All
Models with Removable Lower Link Balls
|
|
B55
|
C5NN557B
1822686
|
Ball
Cat 2 (1-1/8") flat sides |
|
B57
|
C5NN557A
1801634
|
Ball
Cat 2 (1-1/8") round |
|
5
|
B127
|
C5NNN557B
1814226
|
Clip
(ball retaining) |
|
6
|
B5142
|
|
Dual
Cat 1-2 ball and clip |
|
7
|
B1700
|
NCA563C
1801640
|
Tapered
Lower Link
Mount Pin Cat 1 (heat treated) |
2000,
3000, 2600, 3600
fits L.H. side only with diff lock.
Both sides without diff lock (Short Pin)
|
|
8
|
B1085
|
C5NN595B
1801675
|
Eye
Bolt Assembly |
Dexta,
Super Dexta, 2000, 3000, 2600, 3600
2310, 2610
When
fitted with Cat 1 linkage
|
|
9
|
B1853
|
957E596
1801676
|
Anchor
Bracket |
|
10
|
B67
|
C7NN591A
1822159
|
Check
Chain |
|
11
|
B5137
|
C5NNA945C
|
Clevis
and Pin Set |
|
12
|
B1795
|
957E566
1717225
|
Knuckle
|
Dexta,
Super Dexta, 2000, 3000, 4000, 2600, 3600
4600, 4100, 2310, 2610, 2910, 3910, 4110, 4610
|
|
13
|
B1640
|
E27N995282
1718905
|
Knuckle
Pin 5/8" dia |
|
14
|
B2387
|
C5NN564B
1801642
|
Yoke
Rod |
2000,
2600
up to Nov 1978
|
|
15
|
B2388
|
C5NNB863A
1802071
|
Yoke
Rod
380mm x 3/4" UNC |
Dexta,
Super Dexta, 2000, 3000, 4000, 2600, 3600
(4600,
4100, 3910, 4610, 4110
with Cat 1 linkage)
|
|
16
|
B389
|
957E585
|
Fork
|
3/4"
x 260mm
|
Dexta,
Super Dexta
|
|
B392
|
C5NN585C
1801668
|
3/4"
x 360mm
|
2000,
3000, 2600, 3600, 2310, 2610
|
|
B3615
|
C5NN585B
1801667
|
3/4"
x 500mm
|
4000
(3900, 4600, 4100, 3910, 4610, 4110
with Cat 1 linkage)
|
|
B7070
|
E0NN585CA
3924898
|
13/16"
x 510mm
|
3900,
4600, 4100, 3910, 4610, 4110
with Cat 2 linkage
|
|
B2453
|
D2NNA935A
1831205
|
1-1/4"
x 450mm
|
5000,
5600, 6600, 6700, 7000, 7600, 7700
with 915mm links
|

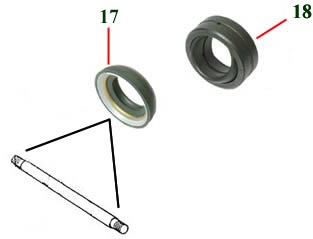

17 |
|
5121123
47124792 |
SENSOR SHAFT SEAL |
3435, 3935, 4135, 4835, 5635, 6635 + TN & TD Series,
L60, L65, L75, L85
TL70, TL80, TL90 |
18 |
|
5116244 |
SENSOR SHAFT BEARING |
|
