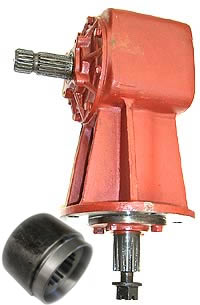

100 HP Gearbox
Part No. B4667 - 1:1.92 ratio See Below
Part No. B4668 - 1:1.46 ratio
Part No. B9208 - 1:1 ratio
|
|
SPECIFICATIONS |
|

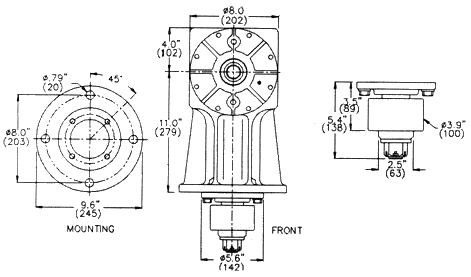

A = 180mm (7") |
HOUSING:
SHAFTS:
GEARS:
SEALS:
BEARINGS:
OIL:
WEIGHT:
INPUT SHAFT: |
60-45-10 Nodular
UNS G51200
UNS G51200
Triple Lipped
Spring Loaded
Tapered Roller
EP-140, 47oz, 1.39L
117 lbs, 53.1kg
1 3/4" x 20 spline |
|
|

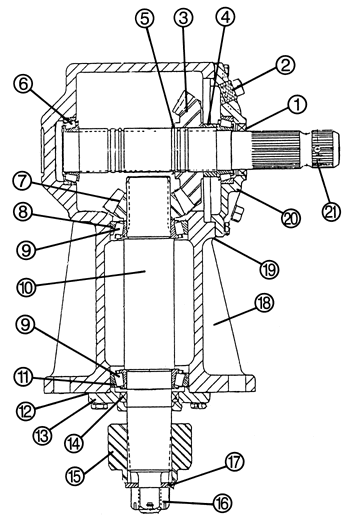

SPARE PARTS |
|
REF |
PART No. |
DESCRIPTION |
|
1 |
|
Input Seal |
|
2 |
|
Breather Plug |
|
3 |
|
Input Gear 19 tooth (1:1.46)
Input Gear 17 tooth (1:1) |
|
4 |
|
Spacer |
|
5 |
|
Circlip (circlip) |
|
6 |
|
Cup & Cone assembly (2 req) |
|
7 |
|
Output Gear 13 tooth (1:1.46)
Output Gear 17 tooth (1:1) |
|
8 |
|
Top Bearing Cup |
|
9 |
|
Bearing Cone - Top & Bottom |
|
10 |
|
Output Shaft |
|
11 |
|
Lower Bearing Cup |
|
12 |
|
Shim gasket (use qty as req.) |
|
13 |
|
Lower Cap |
|
14 |
|
Lower Oil Seal |
|
15 |
|
Hub |
|
16 |
|
1" x 14 TPI Castellated Nut |
|
17 |
|
Flat Washer (1" ID) included with B7388 |
|
18 |
|
Main Housing |
|
19 |
|
Shim gasket (use qty as req.) |
|
20 |
|
Input Cap |
|
21 |
|
Input Shaft 1 3/4" x 20 spline |
|
|
|
Part No. B4667 - 1:1.92 ratio |
|
SPECIFICATIONS |
|
A = 180mm (7") |
HOUSING:
SHAFTS:
GEARS:
SEALS:
BEARINGS:
OIL:
WEIGHT:
INPUT SHAFT: |
60-45-10 Nodular
UNS G51200
UNS G51200
Triple Lipped
Spring Loaded
Tapered Roller
EP-140, 47oz, 1.39L
117 lbs, 53.1kg
1 3/4" x 20 spline |
|
|

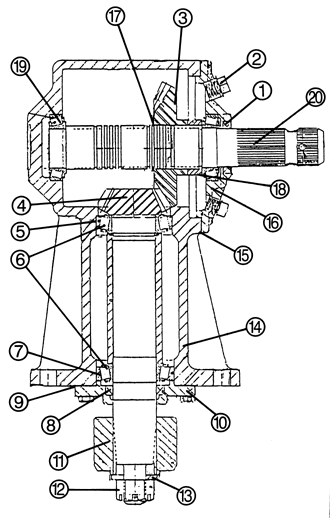

SPARE PARTS |
|
REF |
PART No. |
DESCRIPTION |
|
1 |
|
Input Seal |
|
2 |
|
Breather Plug |
|
3 |
|
Input Gear |
|
4 |
|
Output Pinion Shaft |
|
5 |
|
Top Bearing Cup |
|
6 |
|
Bearing Cone - Top & Bottom |
|
7 |
|
Lower Bearing Cup |
|
8 |
|
Lower Oil Seal |
|
9 |
|
Shim gasket (use qty as req.) |
|
10 |
|
Lower Cap |
|
11 |
|
Hub |
|
12 |
|
1" x 14 TPI Castellated Nut |
|
13 |
|
Flat Washer (1" ID) included with B7388 |
|
14 |
|
Main Housing |
|
15 |
|
Shim gasket (use qty as req.) |
|
16 |
|
Input Cap |
|
17 |
|
Circlip (circlip) |
|
18 |
|
Spacer |
|
19 |
|
Cup & Cone assembly (2 req) |
|
20 |
|
Input Shaft 1 3/4" x 20 spline |
|
|
|
|
