Wide Angle Joints 2
Wide Angle Shaft Parts

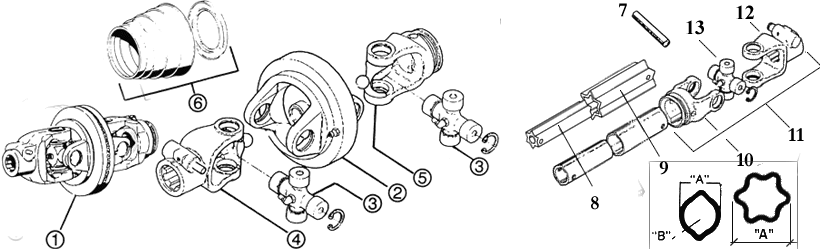

80 Degree(Welded Flange) WIDE ANGLE JOINTS
for LEMON and STAR PROFILE tube


REF
DESCRIPTION
SHAFT SERIES
W2380 series
Standard Lemon Profile tube
W2480 series
Lemon and Star Profile tube
W2580 series
Star Profile Tube
1
JOINT - With 1 3/8" x 6 Spline End Yoke to fit INNER TUBE
AG238001
("A" = 34.5mm)
Lemon profile tube

AG35001
("A" = 39.5mm)
Lemon profile tube

AG35004
("A" = 51mm)
Star Profile Tube
AG36001
("A" = 51mm)
Star Profile Tube
JOINT - With 1 3/8" x 21 Spline End Yoke to fit INNER TUBE
N/A
N/A
AG36001121
("A" = 51mm)
Star Profile Tube
JOINT - With 1 3/4" x 20 Spline End Yoke to fit INNER TUBE
N/A
N/A
AG36001120
("A" = 51mm)
Star Profile Tube
JOINT - With 1 3/8" x 6 Spline End Yoke to fit OUTER TUBE
AG238002
("A" = 41mm)
Lemon profile tube

AG35002
("A" = 48mm)
Lemon profile tube

AG35005
("A" = 61mm)
Star Profile Tube
AG36002
("A" = 61mm)
Star Profile Tube
2
CENTRE ASSEMBLY
AG238000
AG35000
AG36000
3
UNI CROS KIT
(2 required)
A2106
A3506
A3606
4
QUICK RELEASE
END YOKE
AG2386138
1 3/8" x 6 splines

AG2386121
1 3/8" x 21 splines
AG356138
1 3/8" x 6 splines

AG356121
1 3/8" x 21 splines
AG366138
1 3/8" x 6 splines

AG366121
1 3/8" x 21 splines

AG366120
1 3/4" x 20 splines
5
INNER TUBE YOKE
AG2386234
("A" = 34.5mm)
Lemon profile tube
AG356239
("A" = 39.5mm)
Lemon profile tube
AG366251
("A" = 51mm)
Star Profile Tube
OUTER TUBE YOKE
AG2386241
("A" = 41mm)
Lemon profile tube
AG356248
("A" = 48mm)
Lemon profile tube
AG366261
("A" = 61mm)
Star Profile Tube
6
SAFETY CONE ASSEMBLY
ASW3100
7
ROLL PIN (2 Req)
8
INNER TUBE
1mtr (3ft)
3mtr (9.8ft)
= A344
= A344X3
"A" =
"B" =
34.5mm
1 3/8" "
4mm
5/32"


Hollow Bar

Star Profile Tube
1mtr (3ft)
3mtr (9.8ft)
= A510
= A510X3
"A" =
"B" =
51mm
2"
4mm
5/32"
OR
Lemon Profile Tube
1mtr (3ft)
3mtr (9.8ft)
= A395
= A395X3
"A" =
"B" =
39.5mm
1 1/2"
5mm
3/16"


Hollow Bar

Star Profile Tube
1mtr (3ft)
3mtr (9.8ft)
= A510
= A510X3
"A" =
"B" =
51mm
2"
6mm
1/4"
9
OUTER TUBE
1mtr (3ft)
3mtr (9.8ft)
= A413
= A413X3
"A" =
"B" =
41.3mm
1 5/8"
3mm
1/8"
Star Profile Tube
1mtr (3ft)
3mtr (9.8ft)
= A614
= A614X3
"A" =
"B" =
61mm
2 7/16"
4mm
5/32"
OR
Lemon Profile Tube
1mtr (3ft)
3mtr (9.8ft)
= A484
= A484X3
"A" =
"B" =
48mm
1 7/8"
4mm
5/32"
Star Profile Tube
1mtr (3ft)
3mtr (9.8ft)
= A614
= A614X3
"A" =
"B" =
61mm
2 7/16"
4mm
5/32"
10
OUTER TUBE YOKE
A35248
Lemon profile tube

A35261
Star Profile Tube
11
OUTER TUBE JOINT
A35005
1 3/8" x 6 Splines
Lemon profile tube

A35002
1 3/8" x 6 Splines
Star Profile Tube
Quick Release Type
A36002
1 3/8" x 6 Splines
A36002121
1 3/8" x 21 Splines
A36002120
1 3/4" x 20 Spline
Clamp Type
A36002538
1 3/8" x 6 Splines
A36002521
1 3/8" x 21 Splines
A36002520
1 3/4" x 20 Spline
12
END YOKE
Quick Release Type
A421138
1 3/8" x 6 Splines
A421121
1 3/8" x 21 Splines
Clamp Type
A421538
1 3/8" x 6 Splines
Quick Release Type
A035138
1 3/8" x 6 Splines
A035121
1 3/8" x 21 Splines
A035120
1 3/4" x 20 Spline
A035134
1 3/4" x 6 Spline
Quick Release Type
A036138
1 3/8" x 6 Splines
A036121
1 3/8" x 21 Splines
A036120
1 3/4" x 20 Spline
A036134
1 3/4" x 6 Spline
Clamp Type
A036538
1 3/8" x 6 Splines
A036521
1 3/8" x 21 Splines
A036520
1 3/4" x 20 Spline
A036534
1 3/4" x 6 Spline
13
UNI CROSS KIT
