Shaft Guard
SHAFT GUARD

AS 1121.4-2007 APPROVED
ISO 5674 APPROVED
ASAE S522.1 APPROVED

U.V. RESISTANT

An alternate design requiring tools to open is available for European markets.
For this version substitute the last "0" digit of the part number with "1"
eg. AS20090 becomes AS20091

GUARDS EASILY CUT TO LENGTH
PART No.
Fits Shafts Overall Length
APPLICATION
CLOSED
LENGTH
OPEN
LENGTH

AS20090
AS20130
AS20180

NOTE:Includes ALL Standard Bearings



1 mtr *
1.5 mtr *
2 mtr *
* Guards easily
cut to length

1.6 mtr *
2.5 mtr *
3.4 mtr *
* Guards easily
cut to length

SMALL TO MEDIUM DIA SHAFTS

Yoke bearing groove dia 32mm to 53mm
BARE-Co shafts up to and including series 4
BYPY & COMER shafts up to and including series 4 with triangle profile drive tube (see below**)
H.SPICER shafts up to and including series 1310
WALTERSCHEID shafts up to and including series W2100
JAYBEN shafts up to and including series 4AG
US. 6N - 12N Series

**Add
AS274
SPECIAL BEARING SET
for Latest BYPY Shafts with Square Drive Tube. Series S2, S4, S5.
 Yoke Bearing groove diameters
70mm (2.75") + 73mm (2.875")

AS30090
AS30130
AS30180



NOTE:Includes ALL Standard Bearings





1 mtr *
1.5 mtr *
2 mtr *

* Guards easily
cut to length


1.6 mtr *
2.5 mtr *
3.4 mtr *

* Guards easily
cut to length

LARGE DIAMETER PTO SHAFTS

Yoke bearing groove dia 53/60mm to 80mm
BARE-Co shafts series 6 to 2600
BYPY & COMER shafts series 5 to 10 series with triangle profile drive tube (see below**)
H.SPICER shafts series 1350 upwards
WALTERSCHEID shafts series W2300S to W2600 (see below for W2700, P600, P700)
JAYBEN shafts series 5AG upwards
US. 14N - 35N - 44N - 55N Series

**Add
AS390
SPECIAL BEARING SET
for Latest BYPY Shafts with Square Drive Tube.
Series S6, S7, S8, H8
 Yoke Bearing groove diameters
86mm (3.39") + 89mm (3.5")


AS382
SPECIAL BEARING SET NOW AVAILABLE:
for the VERY LARGE (50mm 1.97" dia Cross Bearing) Walterscheid W2700 series EARLY type shafts

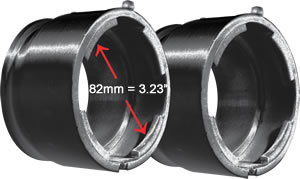

Confirm shaft groove diameter with this picture


AS395
SPECIAL BEARING SET NOW AVAILABLE:
for the VERY LARGE (50mm 1.97" dia Cross Bearing) Walterscheid P600 & P700 series LATE type shafts

Confirm shaft groove diameter with this picture
See Next Page for SAFETY GUARD SPARE PARTS

PTO GUARD EXTENSION BELLOWS
PART No.
LENGTH
DESCRIPTION
AS2E
140mm (5 1/2") long.
Replaces existing bellows for applications requiring Cover to end of end yoke.
AS3E
190mm (7 1/2") long.
