MF - Transmission
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only
|

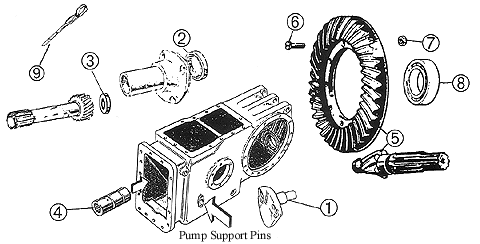

Ref
|
Part
No.
|
Replaces
|
Description
|
Application
|
|
1
|
B5136
|
898643M1
|
Pump Locating Dowel |
All non Italian models from MF35 onwards |
1a |
B6136
|
898937M1
|
Hydraulic Pump Locating Dowel |
MF240, 245, 265, 275, 290
MF 550, 565, 575, 590, 595, 355, 365
370, 390, 398, 399, 675, 690, 698, 699
|
|
2
|
B5303
|
570479M1
|
Main
Drive (Input) Seal |
Te20
|
|
B3847
|
195523M1
|
MF35
single clutch model
|
|
B3849
|
195503M1
|
Outer
Main
Drive
Seal |
Oil
Seal |
Check
Size |
2¼"
O.D. |
MF35,
MF65, MF175, MF178
(std. Transmission only)
|
|
B5304
|
192329M2
|
Early
models with bush support |
53mm
O.D. |
MF35,
MF65, MF135, MF165, MF175
Multipower transmission
|
|
B5311
|
886673M1
|
Models
with 1st gen. needle bearing support |
2"
O.D. |
MF135,
148, 165, 168, 175, 178, 185, 188
First models with needle bearing support and Multipower
transmission
|
|
B5151
|
1860867M3
|
Latest
type needle bearing support |
1.9"
O.D. |
MF240,
250, 550, 265, 275, 290, 575, 590, 675
8 speed trans. or Multipower + late or updated
MF135, 148, 165, 168, 175, 185,
188
|
|
3
|
B3848
|
195501M1
|
Inner
Main Drive
Seal |
1.57"
O.D. |
MF35,
MF65, MF175, MF178
std. transmission
|
|
B5305
|
186011M1
|
1.625"
O.D. |
MF135,
148, 165, 168, 185, 188, 240, 250, 550
265, 275, 575, 590
std. transmission
|
|
B5306
|
883935M4
|
1.5"
O.D. |
All
MF models with Multipower transmission
|
|
4
|
B2364
|
880069M2
|
Shear
Sleeve 54mm dia. |
Length
|
Grooves |
MF35,
MF65
up to 564185 , MF148 up
to 608040
MF135 all 6 speed, 8 speed
to 158170.
Multipower. to 457361
|
|
127mm
|
2
|
|
B2365
|
880070M2
|
3
|
MF65
from 564186 , MF135 8 speed
from 158171
MF165 up to 144685 , MF168
up to 258378
MF175 , MF178 , (MF185,
188 up to 325657)
|
|
B5203
|
1680189M1
|
Shear
sleeve (1 groove) |
97mm |
Dia.
|
MF165
from 144686 , MF168 from
258379
MF185, 188 from 325658
MF265, 275, 285, 290, 565, 575,
590, 675, 690
|
|
57mm
|
|
B5204
|
1871924M1
|
54mm
|
MF135
Multipower from 457362, MF148
from 608041
MF240, 250, 550
|
|
5
|
B2361
|
1885317M92
1683757M91
|
Crown
Wheel & Pinion
including sleeve, short/long pinion |
MF35,
MF135
kit suits both long & short pinion models
|
|
B9025
|
1683757M91
|
Crown
Wheel & Pinion |
MF230,
MF240
|
|
6
|
B2362
|
825776M1
|
Bolt
(Crown Wheel) |
All
MF Models
|
|
7
|
B2363
|
891947M1
|
Nut
(Crown Wheel) |
|
8
|
B2599
|
1851533M91
|
Diff.
Carrier bearing |
Te20,
MF35
(both sides)
L.H. side only all MF diff. lock models except
MF65
|
|
B5307
|
1850909M91
|
R.H.
Side only all MF models with diff. lock
|
|
9
|
B1212
|
1665962M91
|
Transmission
Dipstick |
MF35
, 65
All UK models prior to 3000 series
|
|
10
|
|
7085
|
Selector
Fork - 1st / 2nd Gear |
Te20 |
|
11
|
|
180006M1
963782M1
|
Gear
Lever Knob 3/8" UNF |
All
Models from MF35 onwards
except Italian (LANDINI) models
NOTE: knob is plain round |
|
12
|
|
180579M3
|
|
Gear
Lever Boot
|
OPTION |
|
|
All
(Non Italian) Models from MF35
on |
|
13
|
|
1678565M2
|
MF265,
275, 290, 675, 690 |
14 |
B2398 |
|
Transmission Gasket Set |
Te20 |
|
