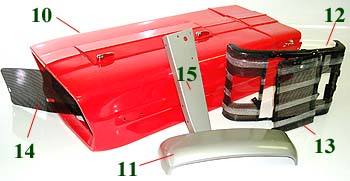

MF - Hood Panels
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|
|
|
|
Ref
|
Part
No.
|
Replaces
|
Description
|
Application
|
|
1
|
B1599
|
1944
|
Hood
to Dash Sealing Rubber |
Te20
|
|
B431
|
826881M1
|
MF35
|
|
2
|
B262
|
826812M91
|
Grille |
|
2A
|
|
826817M92
|
Lower
Front Apron |
|
3
|
B5213
|
1884897M1
|
Hood
Lock Rod & Wing Nut |
|
4
|
B432
|
828223M91
|
Hood
Top Door Lock Lever |
MF35
from 141141 (with lever locks)
|
|
5
|
B1317
|
885359M91
|
Lock
Lever
for Battery Door |
MF135-148
MF240
|
|
6
|
B1533
|
182367M2
|
Lock
Hook Kit for
battery door |
|
7
|
B1531
|
885365M91
|
Lock
Lever (DZUS)
for hood top door |
MF135,
148, 165, 175, 178, 185, 188
|
|
8
|
B1532
|
828224M1
|
Wire
Latch for
DZUS locks |
Above
models + all applications of DZUS fasteners (grille
etc)
|
|
9
|
B5132
|
180718M1
|
Hood
Pivot Bolt |
Te20,
MF35, 135, 165, 175
|
|
10
|
NLA
|
|
|
MF135,
148
|
|
11
|
B8528
|
897821M1
|
Lower
Front Apron |
|
B1287
|
880227M1
|
MF165,
175, 178, 185, 188
|
|
12
|
B6720
|
1886314M91
|
Grille
330mm high |
MF135
to ser No. 400000
|
|
B6721
|
1861364M91
|
Grille
356mm high |
MF135
from 400001 + MF148
|
|
B6722
|
1860167M91
|
Grille |
MF165,
168, 175, 178, 185, 188
|
|
13
|
B6723
|
1882984M92
|
Grille
Door 330mm high |
MF135
to ser No. 400000
|
|
B6724
|
1861374M91
|
Grille
Door 356mm high |
MF135
from 400000 + MF148
|
|
B6725
|
963829M91
|
Grille
Door |
MF165,
168, 175, 178, 185, 188
|
|
14
|
B219
|
1882990M1
|
Top
Nose Grille |
MF135,
148, 165, 168, 175, 178, 185, 188
|
|
15
|
B1284
|
1882987M1
|
L.H.
Side Panel -
500mm Long |
MF135
to ser No. 400000
|
|
B1285
|
1882986M1
|
R.H.
Side Panel -
500mm Long |
|
B1384
|
1871738M1
|
L.H.Side
Panel
- 525mm Long |
MF135
from 400001 + MF148
|
|
B1385
|
1871737M1
|
R.H.
Side Panel
- 525mm Long |
|
16
|
B1601
|
880257M91
|
L.H.
Side Panel |
MF165
(175, 178 from 724936)
MF185,
188
|
|
B1602
|
880256M91
|
R.H.
Side Panel |
|
17
|
NLA
|
|
|
MF165,
175, 178, 185, 188
|
|
18
|
B436
|
1687819M91
1688814M92
|
Grille |
MF240,
250, 254, 274
|
|
B440
|
1876198M91
|
MF265,
275, 290, 675, 690, 699
|
|
19
|
|
9523
9524
|
Pair
of Grilles |
Te20 |
|
20
|
|
9533
|
Front
"T" Piece |
Te20
Petrol
& Kero (Modify starting hole for TeF20 diesel) |
21
|
|
|
PAIR of Side Panels |
Te20 |
22
|
|
|
Front Badge |
Te20 |
|
