John Deere - Linkage - 2
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|

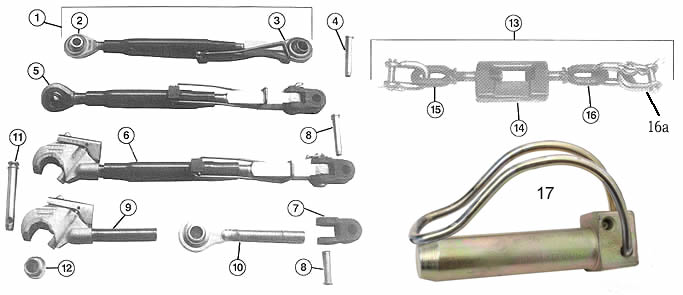

Ref.
|
PART
No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B6695
|
AT23758
(AL39170)
|
TOP
LINK
|
1020,
1120, 2020, 2120, 1030, 1130
1630, 1830, 2030, 2130, 940, 1040, 1140 1640, 1840,
2040, 2040S, 2140, 2240, 1550 1750, 1850, 1950, 2150,
2255, 2350, 2550
|
|
2
|
B6710
|
AT23759
|
L.H.
THREAD END 20mm EYE
|
|
3
|
B6711
|
AL18136
|
R.H.
THREAD END 1" EYE
|
|
4
|
B592
|
AR21912
|
20mm
dia TOP LINK PIN
|
|
5
|
B2006
|
|
TOP
LINK (WITH BALL END)
|
3030,
3040, 3120, 3130, 3140
|
|
6
|
B593
|
|
TOP
LINK (WITH QUICK HITCH)
|
|
7
|
B7510
|
L41865
T28353
|
KNUCKLE
|
|
8
|
B2747
|
AT21754
|
PIN
3/4" x 2 1/2"
|
|
9
|
B594
|
|
1
1/4" R.H. QUICK HITCH END
|
|
10
|
B7483
|
|
1
1/4" UNC R.H. END 1" EYE
|
|
11
|
B81
|
R53296
|
TOP
LINK PIN 1" DIA
|
|
12
|
B5129
|
F2681R
|
QUICK
HITCH BALL 2" O.D. - 1" I.D.
|
|
13
|
B595
|
VARIOUS
|
UNIVERSAL
STABILISER ASSEMBLY
(ADJUST RANGE 41 to 49cm)
|
1120,
1030, 1130, 2030, 2130
1630, 3030, 3130, 940, 1040, 1140
1640, 1840, 2040, 2040S, 2140, 3040
3140, 3340, 3640, 1850, 1950, 2250
2450, 2650, 2850, 3050, 3150, 3350
|
|
14
|
B484
|
|
TURN
BUCKLE
|
Suits
Bare-Co B595 Stabiliser
|
|
15
|
B483
|
|
L.H.
THREAD EYE
|
|
16
|
B1858
|
|
R.H. THREAD EYE
|
|
16a
|
B6718
|
|
CLEVIS & PIN ASSEMBLY
|
17 |
|
DE18899 |
LINCH PIPE PIN |
JD. 6010, 6020, 6110, 6120, 6210, 6215, 6220, 6310, 6320, 6410, 6415, 6420, 6505, 6510, 6520, 6610, 6620, 6810, 6820, 6910, 6920 |

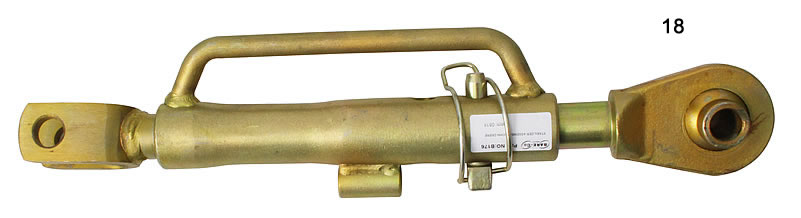

18 |
|
AL201043, AL201044, AL201045 |
STABILISER |
|
