Hydraulic Motors

Hydraulic Motors

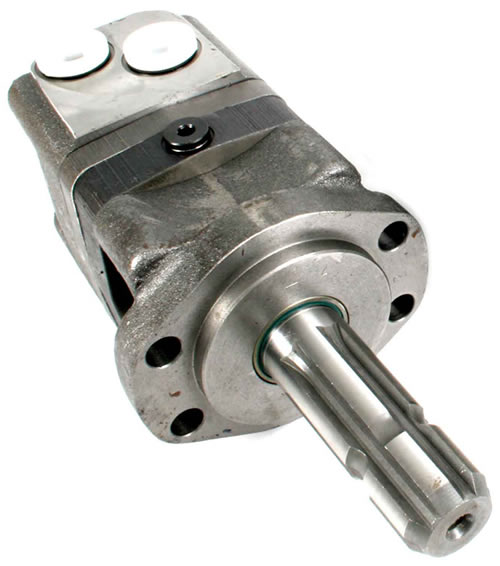

FEATURES:

Ports - 7/8" UN "O" Ring
Roller type Gear Stator
Disc Valve linked to Roller Shaft via Drive Link
Output shaft supported by tapered roller bearings.
High pressure motor seals
Cross port relief required for pressure spikes.
These motors are suitable for continuous operation under rough operating conditions such as high operating pressures, thin oil, or frequent reverse cycling. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. The drive link and balanced disc valve minimise hydraulic and mechanical losses. This design produces motors with high efficiency, even at high pressures, and good starting chracteristics.

Maximum Flow:
65 L/min 17 US gal/min

See NEXT PAGE for motor with
HIGHER maximum pressure and flow.

Technical Data

PART NUMBER	SHAFT TYPE	MOTOR DISPLACEMENT	INPUT FLOW	INPUT PRESSURE	MOTOR SPEED	TORQUE	MOUNTING
B8704	1 3/8" x 6 Spline Standard Agricultural ASAE Spline Designed to Drive through Bare-co Spring Cushion Freewheel Coupling *Shown* *Below*	80cc 4.9cu in/Rev Max. Speed: Continuous 724rpm Intermittent 900rpm	30 lpm 7.9 US gal/m	1000 psi 70 bar	352 rpm	59 ft lbs 80 Nm	SAE "A" 4 Hole Style Flange
				2000 psi 140 bar	338 rpm	117 ft lbs 158 Nm
				2500 psi 175 bar	330 rpm	144 ft lbs 195 Nm
			50 lpm 13.2 US gal/m	1000 psi 70 bar	594 rpm	57 ft lbs 77 Nm
				2000 psi 140 bar	569 rpm	113 ft lbs 153 Nm
				2500 psi 175 bar	560 rpm	142 ft lbs 192 Nm
			65 lpm 17 US gal/m	1000 psi 70 bar	832rpm	55 ft lbs 75 Nm
				2000 psi 140 bar	796 rpm	112 ft lbs 152 Nm
				2500 psi 175 bar	786 rpm	140 ft lbs 190 Nm
B8705		100cc 6.2cu in/Rev Max. Speed: Continuous 748rpm Intermittent 900rpm	30 lpm 7.9 US gal/m	1000 psi 70 bar	289 rpm	69 ft lbs 94 Nm
				2000 psi 140 bar	274 rpm	146 ft lbs 198 Nm
				2500 psi 175 bar	269 rpm	184 ft lbs 250 Nm
				3000 psi 210 bar	300 rpm	221 ft lbs 300 Nm
			50 lpm 13.2 US gal/m	1000 psi 70 bar	483 rpm	65 ft lbs 88 Nm
				2000 psi 140 bar	462 rpm	143 ft lbs 194 Nm
				2500 psi 175 bar	450 rpm	182 ft lbs 247 Nm
				3000 psi 210 bar	500 rpm	221 ft lbs 300 Nm
			65 lpm 17 US gal/m	1000 psi 70 bar	735rpm	59 ft lbs 80 Nm
				2000 psi 140 bar	705 rpm	133 ft lbs 180 Nm
				2500 psi 175 bar	696 rpm	177 ft lbs 240 Nm
				3000 psi 210 bar	750 rpm	221 ft lbs 300 Nm
B8706		160cc 9.6cu in/Rev Max. Speed: Continuous 470rpm Intermittent 560rpm	30 lpm 7.9 US gal/m	1000 psi 70 bar	182 rpm	111 ft lbs 150 Nm
				2000 psi 140 bar	168 rpm	237 ft lbs 321 Nm
				2500 psi 175 bar	164 rpm	280 ft lbs 380 Nm
				3000 psi 210 bar	200 rpm	332 ft lbs 450 Nm
			50 lpm 13.2 US gal/m	1000 psi 70 bar	308 rpm	107 ft lbs 145 Nm
				2000 psi 140 bar	294 rpm	233 ft lbs 316 Nm
				2500 psi 175 bar	288 rpm	279 ft lbs 378 Nm
				3000 psi 210 bar	325 rpm	339 ft lbs 460 Nm
			65 lpm 17 US gal/m	1000 psi 70 bar	465rpm	102 ft lbs 138 Nm
				2000 psi 140 bar	447 rpm	229 ft lbs 311 Nm
				2500 psi 175 bar	436 rpm	277 ft lbs 375 Nm
				3000 psi 210 bar	460 rpm	332 ft lbs 450 Nm
B8703 *6 spline*		200cc 12.2cu in/Rev Max. Speed: Continuous 375rpm Intermittent 450rpm	30 lpm 7.9 US gal/m	1000 psi 70 bar	146 rpm	140 ft lbs 190 Nm
			30 lpm 7.9 US gal/m	2000 psi 140 bar	140 rpm	211 ft lbs 399 Nm
			50 lpm 13.2 US gal/m	1000 psi 70 bar	245 rpm	136 ft lbs 184 Nm
			50 lpm 13.2 US gal/m	2000 psi 140 bar	240rpm	291 ft lbs 395 Nm
			65 lpm 17 US gal/m	1000 psi 70 bar	369rpm	118 ft lbs 160 Nm
			65 lpm 17 US gal/m	2000 psi 140 bar	362 rpm	277 ft lbs 375 Nm
B8702 *14 spline*	1 ¼" x 14 Spline		30 lpm 7.9 US gal/m	1000 psi 70 bar	146 rpm	140 ft lbs 190 Nm
			30 lpm 7.9 US gal/m	2000 psi 140 bar	140 rpm	294 ft lbs 399 Nm
			50 lpm 13.2 US gal/m	1000 psi 70 bar	245 rpm	136 ft lbs 184 Nm
			50 lpm 13.2 US gal/m	2000 psi 140 bar	240rpm	291 ft lbs 395 Nm
			65 lpm 17 US gal/m	1000 psi 70 bar	369rpm	118 ft lbs 160 Nm
			65 lpm 17 US gal/m	2000 psi 140 bar	362 rpm	277 ft lbs 375 Nm

CUSHION / FREEWHEEL COUPLING FOR HYDRAULIC MOTORS

ESSENTIAL ITEM FOR HYDRAULIC ROTARY CUTTERS

Part No. B8507	Part No. B8508
Standard Anti-clockwise rotation	Optional clockwise rotation for dual motor application
*Bare-Co Patent*

Unique design for hydraulically driven rotary cutters
Allows hydraulic motor to run at ideal 500 / 600 rpm range.
Allows drive through standard agricultural gearbox. 1:1.47 OR 1:1.93 Ratio.
Prevents transmission impact failures by instantly absorbing a massive
1900 Nm (1400 ft lbs) of torque.
Integral freewheel eliminates transmission failure due to cutter disc inertia during hydraulic valve "STOP" condition.
Standard 1 3/8" x 6 spline female / female.

Shown below:
A typical installation with Bare-Co agricultural gearbox and Bare-Co roller type hydraulic motor.
